DSA Fundamentals #3: The Complete Guide to Flowcharts and Code Tracing

You have to design a system before you can build it. This design is a blueprint of logic. It is the foundation for all great software. This guide will teach you two critical skills: flowcharting and code tracing.

These are not just boring school exercises. They are core practices for seeing logic and checking if it is correct.

• Flowcharting is the art of drawing a map of a process. It helps you show the what and how of a system before you start building.

• Code Tracing is the science of thinking like a computer. You follow a program’s steps one by one. This helps you know exactly how it works.

This guide will take you from a total beginner to an expert. We will look at the language of flowcharts and the skill of tracing. We will see how they apply to famous algorithms. We will see their role in the professional world and their future with AI. Let’s start.

Part I: The Language of Process – Learning Flowcharts

Chapter 1: The Basic Words of Flowcharting

A flowchart is a picture of a process. The famous scientist John Von Neumann invented it in 1945. Its purpose is to make things clear. When you see a workflow as a picture, you can find problems in your logic before they become computer bugs.

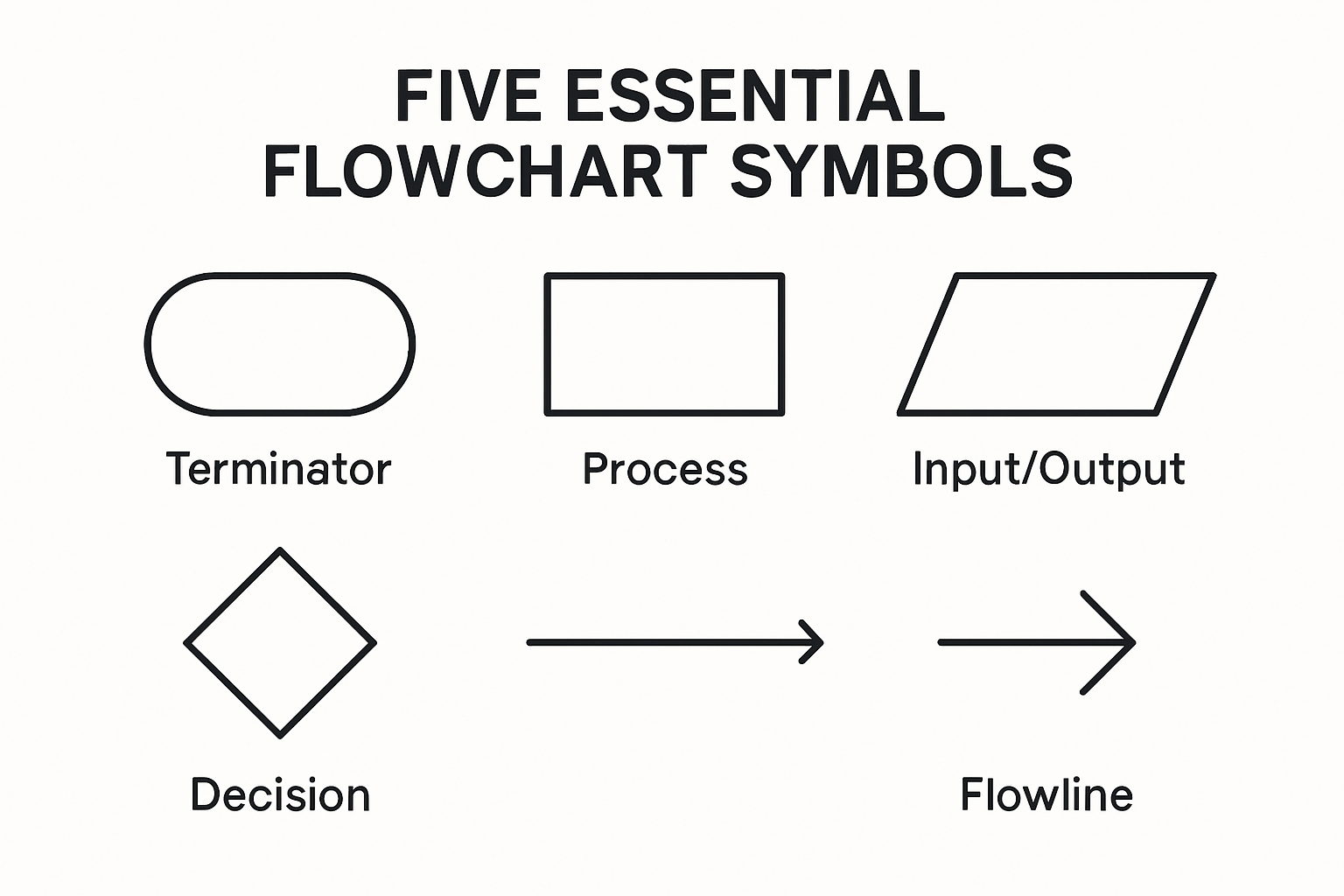

The 5 Main Symbols to Know

You can build almost any flowchart with just five symbols.

• Terminator (Oval): This shows the beginning and the end. Every flowchart needs a clear Start and at least one End.

• Process (Rectangle): This is the main work symbol. It shows where an action happens. Examples are Calculate Sales Tax or Update Customer Record.

• Input/Output (Parallelogram): This shows data coming into or leaving the system. Examples are Enter Username or Display Error Message.

• Decision (Diamond): This is a crossroads. This symbol holds a question like Is Password Correct?. The question splits the path into two branches, usually "Yes" and "No".

• Flowline (Arrow): This is the connector. Arrows show the direction of the process. They link the other symbols to tell a complete story.

How to Make Clear and Good Flowcharts

A flowchart must be clear. A confusing picture is worse than no picture at all.

Pro Tip: Your goal is to make it easy for the reader to understand. Every choice in your design should make the logic easier to follow.

• ✅ Keep a Steady Flow Direction: Draw your chart from top to bottom or from left to right. Do not mix the two directions.

• ✅ Do Not Cross Flowlines: Lines that cross make a tangled mess. It is hard to follow. Change your chart or use connectors to avoid this.

• ✅ Use Connectors for Big Diagrams: For large charts, use On-Page connectors (a circle with a letter) or Off-Page connectors (a home plate shape). These guide the reader without long, messy lines.

• ✅ Be Clear and Short: Use simple, direct words inside your symbols. Calculate Total is better than The total is calculated here.

Common Mistakes to Avoid:

• ❌ Many Start Points: A process should have only one Start point.

• ❌ Unclear Words: Labels like "Process" do not help. Be specific, like Validate Input.

• ❌ Mixed-Up Flow: Do not make the reader look all over the page. Choose one direction and use it.

Chapter 2: Learning More Words – Advanced Symbols

For bigger systems, you need more exact symbols. Use these when you have to show specific technical details. You should add a key or legend for your reader.

• Documentation & Data:

  • Document (Rectangle with a wavy bottom): A report or form that a person can read, like Generate Invoice.

  • Multiple Documents (Stacked symbol): A group of documents, like Review Application Package.

  • Database (Vertical cylinder): A place where structured data is stored, like Query Customer Table.

• Input & Display:

  • Manual Input (Tilted rectangle): When a user types something in, like User Enters Search Term.

  • Display (TV screen shape): Information shown to a user, like Show Confirmation Message.

• Process Control:

  • Predefined Process / Subroutine (Rectangle with double side lines): A complex process that is explained somewhere else. This is important for keeping things organized. An example is Execute Payment Gateway Process.

  • Preparation (Hexagon): A setup step, like Establish Database Connection.

  • Delay (D-shape): A waiting time, like Wait for API Response.

Table 1: Full Guide to Flowchart Symbols

Symbol Name	Visual Shape	Description/Function	Example Use Case
Terminator	Oval / Pill	Shows the start or end of a process.	Start, End
Process	Rectangle	Shows a single action or calculation.	Calculate Total Price, Update Record
Decision	Diamond	Shows a point where the flow splits based on a question.	Is payment successful?, x > 10?
Input/Output	Parallelogram	Shows data entering or leaving the process.	Get User Input, Display Result
Flowline	Arrow	Shows the direction of the process flow.	Connects a Process to a Decision.
Document	Rectangle with wavy base	Shows a single document a person can read.	Generate Invoice, Print Confirmation
Multiple Documents	Stacked Document symbols	Shows a set of several documents.	Review Patient Files
Data / Stored Data	Horizontal Cylinder	Shows data being stored in some way.	Save Game State
Database	Vertical Cylinder	Shows a structured collection of data.	Query Products Database
Manual Input	Tilted Rectangle	Shows a user typing in information.	User Enters Password
Display	TV Screen shape	Shows information displayed to a user.	Show Welcome Screen
Predefined Process	Rectangle with double side lines	Shows a complex process explained elsewhere.	Run Authentication Subroutine
Preparation	Hexagon	Shows a setup or initialization step.	Establish Network Connection
Delay	D-shape	Shows a waiting period in the process.	Wait for 5 seconds
On-Page Connector	Circle	Connects separate parts of a flowchart on the same page.	A flowline goes into circle A and continues from another circle A.
Off-Page Connector	Home Plate shape	Shows that the flow continues on another page.	A flowline goes into connector B on page 1 and continues from B on page 2.
Merge	Upward Triangle	Shows where two or more paths join into one.	Two separate approval paths Merge before the final step.

Chapter 3: Choosing the Right Tool – Types of Flowcharts

Not all flowcharts are the same. Picking the right type of chart is important for good communication.

• Process Flowchart: This is your standard choice for showing the steps in a workflow.

• Swimlane (Cross-Functional) Flowchart: This is the best choice when a process involves many people or teams. It divides the chart into "lanes" to show who does what.

• Data Flow Diagram (DFD): This one is different. It does not show decisions. It only shows how data moves through a system. It shows where data comes from, how it changes, and where it is stored. It is important for analyzing systems.

• System Flowchart: This gives a high-level picture. It shows the flow of data between big parts like servers, programs, and databases.

• Workflow Diagram: This focuses on standard business tasks that are done over and over. It helps find chances to automate work.

• Decision Flowchart: This is a special chart. It uses many decision diamonds to look at all possible results of a complex choice. It is perfect for making troubleshooting guides.

Table 2: Flowchart Type Comparison

Flowchart Type	Main Purpose	Key Features	Who Uses It	When to Use It (Example)
Process Flowchart	To show and study a series of steps.	General use, shows control flow.	General (Managers, Teams, Analysts)	Mapping the steps to make a product.
Swimlane Flowchart	To make roles and duties clear.	Puts steps into lanes by team or person.	Business Analysts, Project Managers	Showing an invoice approval that moves from Sales to Finance to Management.
Data Flow Diagram (DFD)	To show how data moves and changes.	Focuses on information flow, not control.	Systems Analysts, Software Developers	Modeling how customer data goes from a web form into a database.
System Flowchart	To show data flow between big system parts.	High-level view of physical parts.	IT Professionals, System Architects	Showing how a paper order is typed in, processed, and stored on a server.
Workflow Diagram	To model a standard, repeatable business task.	Focuses on consistency and automation.	Operations Managers, Trainers	Documenting the standard way to handle a customer support ticket.
Decision Flowchart	To study and show a complex choice.	Uses many decision (diamond) symbols.	Decision Makers, Strategists	Creating a guide to fix a technical problem.

Part II: The Art of Execution – Learning Code Tracing

Chapter 4: The Why and How of Code Tracing

Code tracing, or a "dry run," is the careful practice of acting out your program's steps on paper. It is the connection between reading code and really understanding how it acts. For a beginner, it is like learning to read music before playing. For an expert, it is the center of fixing bugs.

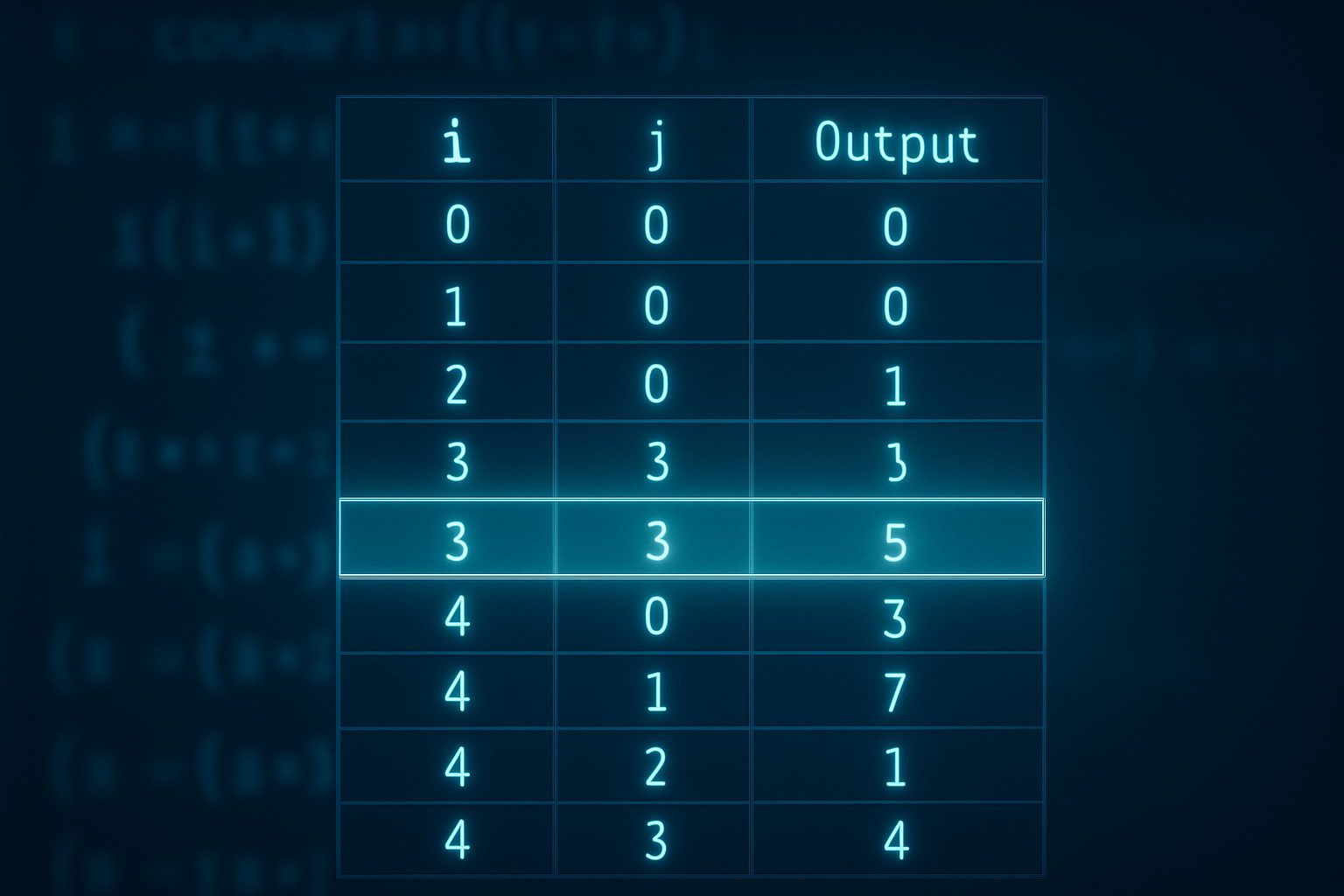

The Trace Table: Your Main Tool

The main tool for a dry run is the trace table.

1. Set Up: Make a column for every variable in your code. Add a column for "Output" and another for any "Condition" being checked.

2. Initialize: Write the starting values of your variables in the first row.

3. Go Line by Line: Go through the code one statement at a time. When a variable's value changes, write the new value on a new row in the right column. When the code prints something, write it in the "Output" column.

4. Repeat: Keep going until the code finishes. The last row shows the final state.

The Golden Rule of Tracing:

Trace what the code really does, not what you wanted it to do. Your brain will trick you. You will see the logic you wanted to write. The trace table tells the truth. It makes you face the reality of your code. This is how you find bugs.

Is Manual Tracing Still Useful with AI and Debuggers?

Yes, it is more useful than ever. But its purpose has changed. It is not mainly for fixing bugs anymore. It is for training your brain.

Automatic debuggers and AI helpers are strong tools. But to use them well, you need to make a good guess about where a bug might be. That gut feeling comes from the slow, manual practice of code tracing. It is the mental gym that builds the strength you need to use advanced tools like an expert.

Stop Scrolling, Start Achieving: Get Actionable Tech & Productivity Insights.

Join the inner circle receiving proven tactics for mastering technology, amplifying productivity, and finding deep focus. Delivered straight to your inbox – no fluff, just results.

Chapter 5: Tracing in Action – From Simple to Complex Logic

To get good at tracing, you must practice with the basic control structures.

• Sequences: This is easy. Just go from top to bottom. Update your table as you go.

• Conditionals (if-else): Check the condition using the current values in your trace table. Follow the true path. You must completely ignore the false path.

• Loops (for, while): This is where you need to be careful.

  1. Check the loop condition.

  2. If it is true, run the loop body one full time. Update your trace table.

  3. Go back to step 1. Check the condition again with the new variable values.

  4. Repeat until the condition is false. Then, leave the loop.

  Watch out for "off-by-one" errors. Carefully tracing your loop counter and exit condition is the only way to be sure your loop runs the right number of times.

Walkthrough: Understanding Nested Loops

Nested loops are a common challenge. The key is to remember this: the inner loop must run completely for every single time the outer loop runs.

Let's trace this pseudocode:

// Outer loop for rows
FOR i = 1 to 2
  // Inner loop for columns
  FOR j = 1 to 3
    OUTPUT (i, j)
  ENDFOR
ENDFOR

Trace Table:

i	j	Condition ('i less than equal to 2')	Condition ('j less than equal to 3')	Output
1		True
	1		True	(1, 1)
	2		True	(1, 2)
	3		True	(1, 3)
	4		False
2		True
	1		True	(2, 1)
	2		True	(2, 2)
	3		True	(2, 3)
	4		False
3		False

The trace makes it clear. i becomes 1. Then j runs its full course from 1 to 3. Only then does i become 2. Then j runs its full course again.

Part III: Connecting Theory and Practice

Chapter 6: The Problem-Solving Cycle

Flowcharts and tracing are not separate skills. They are part of a process. This process turns an idea into working software. You can think of it as an "abstraction ladder."

1. The Algorithm (The Idea): This is the pure recipe for solving a problem. It does not depend on any programming language. Example: The idea of finding something by checking every item one by one.

2. Pseudocode & Flowcharts (The Blueprint): This is about writing down that recipe in a structured way. Pseudocode uses text. A flowchart uses pictures. Both are blueprints made before you start coding.

3. Code (The Real Thing): This is translating the blueprint into a specific programming language. A computer can run this code.

Case Study 1: Linear Search

• Algorithm: Go through a list one item at a time. Stop when you find what you're looking for.

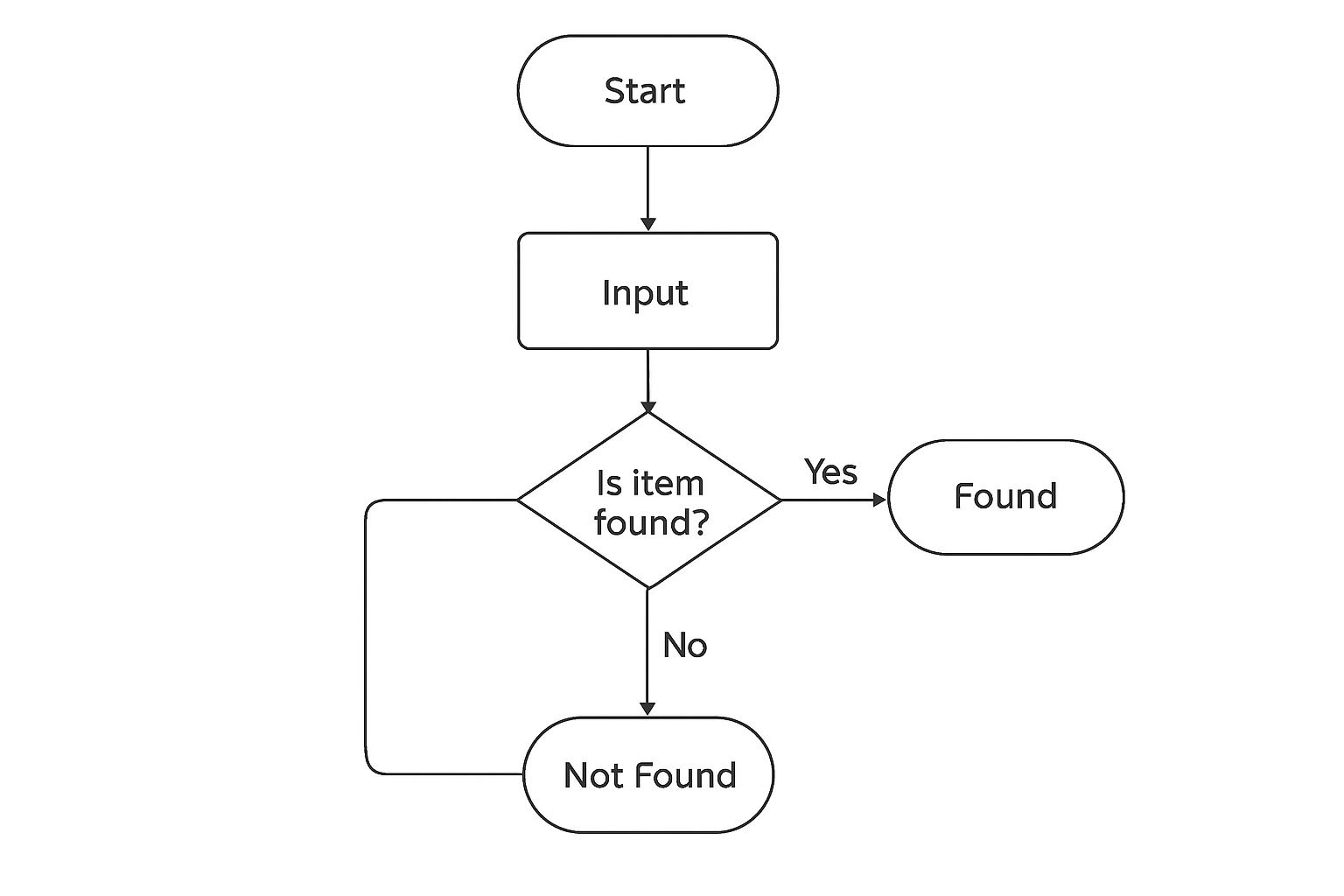

• Flowchart: A loop checks each item. A decision diamond inside asks, "Is this the target?" If yes, it stops. If no, it goes to the next item and the loop continues.

• Tracing: A trace table with columns for the list, target, currentIndex, and found status shows the logic works.

Case Study 2: Bubble Sort

• Algorithm: Go through a list many times. Compare items next to each other. Swap them if they are in the wrong order. This makes the largest items "bubble" to the end.

• Flowchart: A nested loop structure. The outer loop controls how many times you go through the list. The inner loop does the "compare and swap" work.

• Tracing: A trace table clearly shows how the list changes after each swap. This makes the "bubbling" easy to see.

Case Study 3: Binary Search

• Algorithm: On a sorted list, check the middle item. If it is the target, you are done. If your target is smaller, you only search the left half. If it is larger, you only search the right half. You repeat this until you find the item.

• Flowchart: A loop that keeps dividing the search area. It calculates a mid point. A decision diamond tells the flow to update either the low or high marker. This throws away half the list each time.

• Tracing: The trace table is very important here. It has columns for low, high, and mid. It clearly shows how the search area gets smaller quickly. This shows how fast the algorithm is.

Chapter 7: Advanced Structures

Showing and Tracing Recursion

Recursion is when a function calls itself. Drawing a flowchart for this is hard. Standard charts do not have a way to show the "call stack."

• Flowchart Rule: Use the Predefined Process symbol (rectangle with double side lines). When a function calls itself, draw a flowline to this symbol. This shows a new, separate call is happening.

• Tracing Method: You cannot use one trace table. You must use a stack of trace tables.

  1. Start a trace table for the first call.

  2. When a recursive call happens, stop the current table. Start a new table on top of it.

  3. When a call finishes and returns a value, complete its table. Get the return value. Then "destroy" that table.

  4. Go back to tracing the table underneath. Use the value that was just returned.

This stacked method copies the computer's call stack. It is the only way to correctly trace recursive logic.

Showing Data Structure Operations

Flowcharts do not show the data structures themselves, like a tree. They show the algorithms that work on them.

• Linked Lists: A flowchart for going through a linked list would show a loop. The loop continues as long as the currentNode is not null. Process blocks would "visit node" and "move to next node." The trace table would track pointers like head and currentNode.

• Trees: A flowchart for a recursive tree operation uses the Predefined Process symbol for the recursive calls. Tracing needs the stacked table method. It is often helpful to also draw the tree and mark the path you take.

Part IV: The Professional's Toolkit

Chapter 8: Formal Diagrams for Big Problems

For professional work, you need more than basic flowcharts. This is where standard diagram types come in.

BPMN: Business Process Model and Notation

BPMN is like a flowchart with extra powers. It is designed to map complex business processes with great detail. The goal is for everyone to understand it, from managers to developers.

• Key Features: It has many symbols for different types of Events (what happens), Activities (what work is done), and Gateways (how the path splits). Its Swimlanes are very important for showing who is responsible for each step.

UML Activity Diagrams

UML is the Unified Modeling Language. An Activity Diagram is a complex flowchart for designing software systems.

• Key Feature: Its main benefit is showing concurrent (parallel) activities. It uses special Fork (split flow) and Join (bring flow together) nodes. This is needed for designing modern apps that do many things at once.

Table 3: Formal Diagram Comparison

Feature	Basic Flowchart	UML Activity Diagram	BPMN
Main Use	General process documents.	Modeling software workflows.	Detailed business process modeling.
Key Strength	Simple and flexible.	Modeling parallel actions.	Rich set of symbols for business events.
Concurrency	No built-in support.	Yes. Core feature (Fork/Join).	Yes. Core feature (Parallel Gateways).
Standard	Not a formal standard.	Formal OMG standard.	Formal OMG and ISO standard.
Audience	General public, students.	Software engineers, technical analysts.	Business analysts, managers, developers.

Chapter 9: Flowcharts and Tracing in the Real World

In User Experience (UX) Design: Mapping the User's Path

In UX design, a User Flow is a flowchart. It shows the path a user takes through an app or website to do something.

The key difference: A process flowchart shows the system's logic. A user flow shows the user's experience.

Designers use them to find problems and make navigation easier. A Wireflow is a mix. It replaces the abstract flowchart shapes with simple screen drawings. This gives important visual context.

In Quality Assurance (QA): A Plan for Testing

For QA teams, a flowchart is a map for making test cases. By looking at every path in the diagram, testers can be sure they cover:

• Positive Paths ("Happy Paths"): The normal, successful flow.

• Negative Paths: What happens when users make mistakes.

• Alternative Paths: Every branch from every decision point.

This organized method helps make sure everything is tested. It lowers the risk of bugs reaching the customer.

Communicating with Different Groups

A skilled person knows how to change their diagrams for their audience.

• For Non-Technical People: Use simple, high-level process flowcharts. Do not use jargon. Focus on the why and the results. Tell a story.

• For Technical Teams: Use exact, detailed diagrams like UML or BPMN. Give the clear blueprint they need to build. For deep talks about algorithms, pseudocode is often faster and clearer than a complex chart.

Part V: The Future of Process and Logic

Chapter 10: The Art and Science of Debugging

Tracing is the base of debugging. Debugging is the art of figuring out why your code is broken.

Complete Debugging Strategies

Expert debuggers do not just trace from top to bottom. They use smart strategies:

• Hypothesis-Driven Debugging: Look at the symptoms. Make a theory about the cause. Then use the debugger to prove or disprove it. This is the scientific method for code.

• Divide and Conquer: If you have a bug in 1000 lines of code, turn off 500 lines. Is the bug still there? You just cut your search area in half. Repeat this until you find the bug.

• Backtracing: Start from where the error happens. Work backward. Ask, "How did the program get into this state?"

• Rubber Duck Debugging: Explain your code, line by line, to an object like a rubber duck. The act of saying your thoughts out loud will often show you the mistake in your logic.

Chapter 11: The AI Revolution

AI and Large Language Models (LLMs) are changing this field. They are not replacing these skills. They are adding to them.

AI-Powered Diagram Making

In 2024 and 2025, tools like Lucidchart and Miro can make a flowchart from a text description or a block of code. This makes documentation much faster. It helps developers see complex logic right away.

The Future of Debugging: AI-Assisted Program Repair

The next step is Automated Program Repair (APR). This is where AI does not just find bugs. It fixes them. New models use a process of self-debugging. They write code, test it, look at the trace feedback, and then change the code to fix the errors.

The Human and AI Team

This does not make human skills useless. It makes them more valuable.

• AI's Weakness: AI can make a diagram or trace code very fast. But it does not have a deep understanding of the situation. It cannot make the smart guesses that lead to new ideas.

• The Team-Based Future: The best professional will be a mix. The human gives the wisdom and asks the important questions. The AI provides the power. It can instantly run traces, make diagrams, and study data at a speed no human can.

Learning the basic skills in this guide is not a step back. It is a necessary step forward. It prepares you for this new time of working with smart machines.

Conclusion & Your Learning Path

You now have a map. It will help you master the design, communication, and checking of logical systems. This is the heart of computational thinking. This skill is more important than any single programming language or technology. To continue your learning, check out these resources.

Recommended Books (2025)

• The Foundation (Algorithms):

  • Introduction to Algorithms (CLRS): The main reference book for algorithms. It is dense but complete.

  • Grokking Algorithms by Aditya Y. Bhargava: A well-illustrated and easy-to-understand starting point.

  • A Common-Sense Guide to Data Structures and Algorithms by Jay Wengrow: Focuses on intuition and real-world use.

• The Application (Software Design):

  • Designing Data-Intensive Applications by Martin Kleppmann: The key guide to modern system design.

  • Clean Code by Robert C. Martin: A famous book on writing code that is easy to read and maintain.

Recommended Online Courses

• Coursera: The Data Structures and Algorithms Specializations from UC San Diego or Stanford are famous for building strong algorithm skills.

• edX: Harvard's CS50's Introduction to Computer Science is a great way to start in the field.

• Udemy: Courses by Andrei Neagoie or Colt Steele are very practical. They focus on the skills needed to pass job interviews.

Interactive Visualization Tools

• VisuAlgo: The most complete visualizer. It covers everything from sorting to complex graph algorithms.

• Algorithm Visualizer: A clean, free tool with code highlighted next to the animation.

• Data Structure Visualizations (USFCA): A classic and large collection of algorithm animations.

Diagramming Software (with Free Options)

• Lucidchart: A top tool for professional, team-based diagramming.

• Miro: A large virtual whiteboard that is great for brainstorming.

• draw.io (diagrams.net): A powerful and completely free tool that is great for students and individual developers.
